Triple Wireline Valve
Triple Wireline Valve for High Pressure Wells and Operations
The Triple Wireline Valve shuts in well pressure securely. Its engineered construction makes this valve durable and easy to maintain. With a multitude of sub sizes, threads, and dimensions, the Triple Wireline Valve will fit perfectly with your wireline operation.
Triple Wireline Valve Features

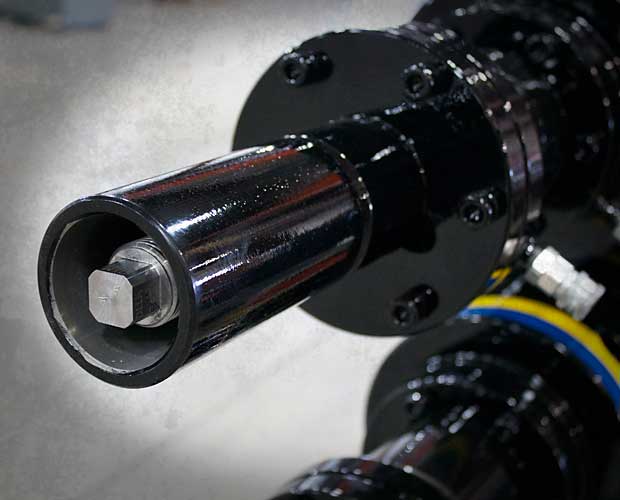

- Reliable hydraulic actuators

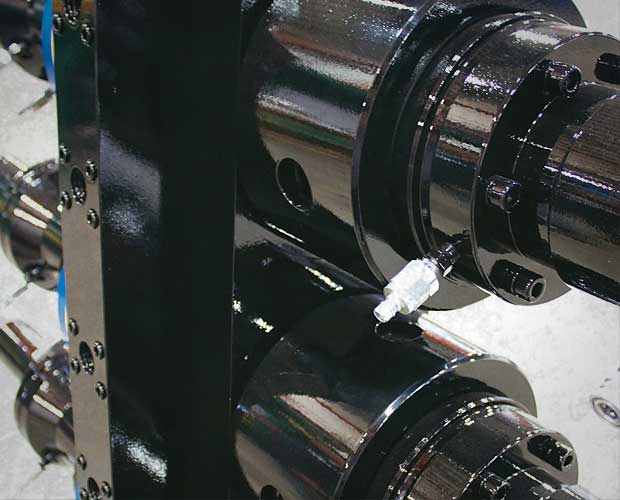

- Convenient equalizing and bleed-off valve
- Recommended for high-pressures
- Strong uni-body construction
- H2S service
Triple Wireline Valve Specifications
| 3" | 4-1/16" | 5-1/8" | 5-1/2" | 7-5/8" | 8-1/2" | |
|---|---|---|---|---|---|---|
| 3K | ||||||
| 5K | ● | ● | ● | ● | ● | |
| 10K | ● | ● | ● | ● | ||
| 15K | ● |

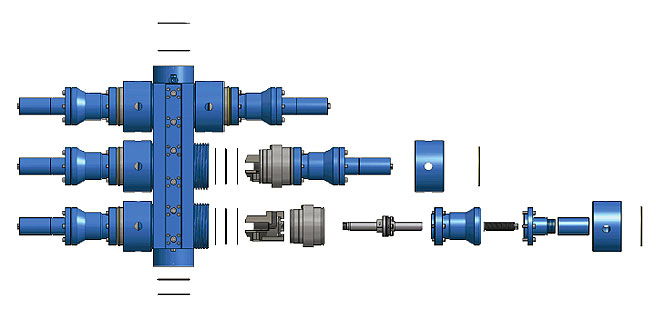

Triple Wireline Valve Break-apart Diagram

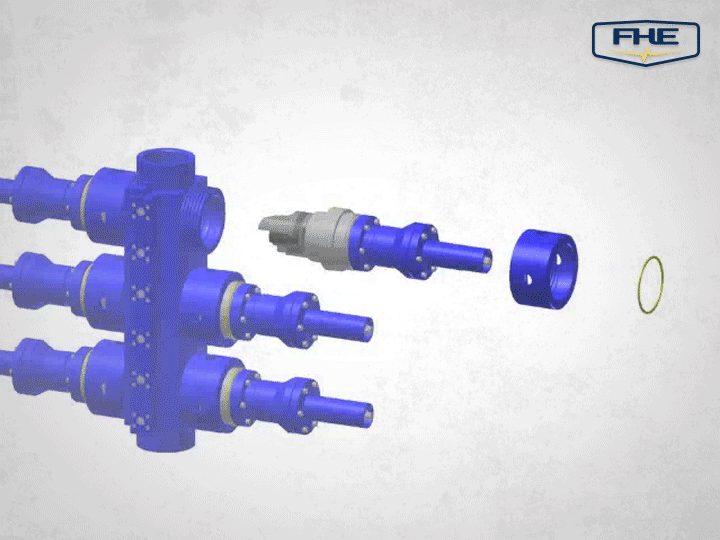

Triple Wireline Valve Ram Arm Animation
